CEMP防爆電機,CEMP防爆馬達,CEMP防爆水泵

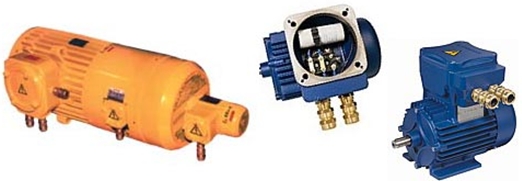

Cemp-Flameproof-Motors Cemp offers custom-made solutions. The main customers are the chemicals industry, pharmaceuticals industry, power plants and minings. Further fields of application are the on-shore- and off-shore plants as well as the shipbuilding industry. The name Cemp stands everywhere for guaranteed security against explosion of dangerous dusts and gasses. We supply from our existing stock Kalefeld flameproof motors Exd(de) IICT4 in frame size 63, 2-poles up to frame size 160, 2-poles (0,18 – 18,5 kW) and frame size 63, 4-poles up to frame size 180, 4-poles (0,12 – 22 kW). All motors on stock are with Ptc thermistors. Other frame sizes and versions are available within 2-8 weeks after receipt of order. Products Flameproof - Explosionproof Motors Series A cast iron Frame size 63 - 315 Ex-d, Ex-de Temperature class T3, T4, T5, T6 Power 0,12 - 200 kW Protection IP55, IP66 ATEX IIB / IIC Series F aluminium Frame size 63 - 80 Ex-d, Ex-de Temperature class T3, T4, T5, T6 Power 0,06 - 1,5 kW Protection IP55, IP66 ATEX IIB / IIC Flameproof - Explosionproof Brake Motors Series D, H, P cast iron Frame size 63 - 250 Ex-d, Ex-de Temperature class T3, T4, T5 Power 0,18 - 55 kW Protection IP55, IP66 ATEX IIB / IIC Series F-F aluminium Frame size 63 - 80 Ex-d, Ex-de Temperature class T3, T4, T5 Power 0,12 - 1,5 kW Protection IP55, IP66 ATEX IIB / IIC Inverter Flameproof - Explosionproof Motors Series A cast iron Frame size 63 - 315 Ex-d, Ex-de Temperature class T3, T4, T5 Power 0,18 - 200 kW Protection IP55, IP66 ATEX IIB / IIC Increased safety Motors Series S aluminium Frame size 63 - 132 Ex-e Temperature class T3 Power 0,12 - 7,5 kW Protection IP55 Non Sparking Motors EEX-NA Series N, AN Frame size 63 - 200 Ex-nA Temperature class T3 Power 0,12 - 132 kW Protection IP55 Motors Dust Series ND, AP Frame size 63 - 315 A22 - tD Gruppe II Power 0,12 - 200 kW Protection IP55 Flameproof Electric Pumps for Printing Machines Series AT Submersible centrifugal electric pumps Ex-d, Ex-de Head up to 8m Output over 300l/min Stem length from 170 to 550mm Series XT - Detachable motor from the pump unit Submersible centrifugal electric pumps Ex-d, Ex-de Head up to 4m Output over300l/min Stem length from 170 to 550mm Standard Motors Serie C Frame size 63 - 315 Power 0,12 - 200 kW Protection IP55 Special applikations Mechanical variants Protection IP56, IP65, IP66 Special flanges and shafts Without terminal box Uni-directional bearings, locked bearings or special bearings Terminal box on side SPM-vibrations measurement Electrical variants Special voltage and frequency Heaters Bimetallic thermal protection (NC, NO), thermistor (PTC), platinum resistor (PT100) Single-phase with permanent capacitor Single-phase with centrifugal switch Accessories Forced ventilation (IC416) Encoder 100 - 10000ppr Bearing sensor Breaks D.C. disk brake A.C. disk brake Hand release of brake Reverse braking function (braking when energized - frame size 63-100)
|
|
