美國Ashcroft儀表公司，至今已經有150年的歷史，Ashcroft壓力表有測試儀器，數字式壓力表，工藝流程壓力表，不銹鋼外殼與工業壓力表，衛生型壓力表，通用型壓力表，溫度儀表，控制儀表及傳感器與變送器等產品系列。
150多年前，愛德華.雅斯科在美國創建了Ashcroft公司。 隨著當時日益更新的工業發展， 企業的生產過程中需要很多更安全，更持久的壓力、溫度儀表儀器，于是他發明了劃時代的新型管狀壓力儀器并將這項技術加以普及，歷史便由此拉開序幕。 隨著時間的推移，世界工業發展需求的不斷變化，Ashcroft公司成為全球儀器儀表行業的領先者，它的產品包括：工業壓力計量儀器儀表、工業特種溫度計量儀器、工業壓力控制器、工業溫度控制器、工業傳感器、壓力溫度數據記錄儀器以及其他與現場指示，安全生產和流程自動化控制密切相關的工業產品。我們的生產和服務基地分布在世界各地，除了中國之外，還包括美國，德國，巴西，墨西哥，沙特阿拉伯，以及新加坡等國家和地區。 在市場的強勁需求下，公司的產品被細分成為很多世界工業界的著名品牌，例如 Ashcroft?, Heise?, Willy? 以及 Weksler?。在石油化工領域、電力領域、廢水處理領域、制藥領域、半導體領域、食物加工及工業管道輸送領域， 您可以隨時隨地發現以上品牌的身影，以及我們竭誠服務的蹤跡。

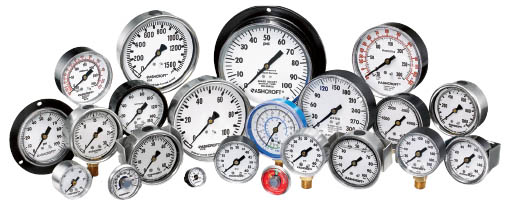

Ashcroft壓力表 Ashcroft工業壓力表,符合ASME B.40.1標準 工業壓力表,符合EN 837標準 普通壓力表 符合ASME B40.1標準 差壓表 XmitrTM變送器壓力表 Ashcroft Plus? 專利技術介紹 校驗設備 模塊校驗設備 數字壓力表 精密彈簧關壓力表 砝碼校驗設備, 便攜校驗設備和容積式校驗設備 開關 B系列開關帶1個設定點（標準或防爆） L/G系列開關帶2個設定點（標準） P系列開關帶2個設定點（防爆） F系列緊湊型壓力開關（防爆） A系列迷你壓力開關(標準或防爆) N系列電子式壓力開關(標準或防爆) 溫度計 Ashcroft溫度計 護套 傳感器 壓力傳感器 差壓傳感器 精密壓力Ashcroft傳感器 配件 儀表閥 阻尼器 虹吸管 過壓保護器 壓力表維修工具 膜片密封 螺紋連接膜片密封 法蘭連接膜片密封 快速連接膜片密封 在線管道膜片密封
For over 150 years, Ashcroft? instruments have set the standards for accuracy, quality, and dependability in pressure and temperature measurement. With products to suit virtually any application, Ashcroft pressure gauges, temperature instruments, pressure and temperature switches, transducers and transmitters are specified and trusted around the world for the most demanding requirements. In chemical processing, oil refineries, power plants, pharmaceutical, food, and industrial equipment applications, the Ashcroft trademark is the industry standard for performance and reliability.
Ashcroft's new pressure transmitters feature a digital display for local indication and a user "turndown" capability for re-ranging. Two ultra-compact configurations are now available: GC51 Gauge and compound ranges to 7500 psi GC52 Wet-wet DP with ranges from 0/4 to 0/400 Inches W.C. and bi-direcrional ranges. New Transducer! The new Ashcroft? GC55 wet-wet differential pressure transducer monitors high differential pressures through 300 psid in HVAC hydronic cooling and heating systems and pump controls. All Gauges are Not Created Equal Ashcroft? G2 Pressure Transducer Delivers Outstanding Performance in OEM Applications Introducing the Ashcroft CXLdp Low Pressure Transducer
ACCURACY ASME B 40.1 Grade B (±3-2-3% of span) DIAL SIZE 11?2,? 2,? 21?2,? 31?2? (for 41?2? available with steel case/ring and plastic window, Type 1000, please contact factory) CASE MATERIAL 1005P – ABS, black 1005 – Black painted steel 1005S – Stainless steel (11?2? & 2? only) Optional, color other than black, vent hole WETTED MATERIAL Bronze/brass. Optional sockets, nickel plated, Teflon taped, top or side connections, throttle plugs SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement CONNECTION 1?8 and 1?4 NPT back and lower. (11?2? not available in 1?4 NPT back; 41?2? Type 1000 available in 1?4 NPT lower only, consult factory) RANGES Vac.-6000 psi and compound TYPE 1005P / 1005 / 1005S GAUGES Applications include compressors, filter regulators, medical equipment, automotive diagnostic, beverage dispensing, industrial machinery and a variety of other applications ACCURACY ASME B 40.1 Grade B (±3-2-3% of span) DIAL SIZE 11?2?, 2,? 21?2?,31?2? CASE MATERIAL Black painted steel WETTED MATERIAL Bronze/brass. SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement CONNECTION 1?8 NPT back, 1?4 NPT back RANGES Vac.-6000 psi and compound TYPE 1001T PANEL GAUGE Applications include instrument panels, air-conditioning equipment, air and gas compressors, machine tools and a variety of other applications. All Gauges Are Not Created Equal… Only Ashcroft? commercial pressure gauges offer the exclusive, patented PowerFlex? movement. The Ashcroft PowerFlex? movement provides a high level of reliability and durability. Superior shock resistance Exceptional vibration resistance Excellent pulsation performance Outstanding durability Helps ensure safety Reduces manufacturing costs Helps assure a quality process Reduces inspection costs In addition, with Ashcroft commercial pressure gauges you get: Broad product selection - 23mm to 41?2? dial sizes - Ranges from vacuum to 15,000 psi Wide variety of case styles and materials Customized logos, dials and pressure connections available. Ashcroft Inc., 250 East Main Street Stratford, CT 06614-5145 USA Tel: 203-378-8281 ? Fax: 203-385-0408 www.ashcroft.com Commercial Gauge Quick Guide BULLETIN CGQG-1 TYPE 1008A/AL GENERAL SERVICE GAUGE Applications include hydraulic systems, machine tools, pressure washers/sprayers and a variety of other applications ACCURACY ASME B 40.1 Grade B (±3-2-3% of span) DIAL SIZE 63mm (21?2?), 100mm (4?) CASE & RING MATERIAL 304 stainless steel, dry, liquid filled or field fillable WETTED MATERIAL Bronze/brass SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement CONNECTION 1?4 NPT lower and back Optional, metric and SAE connection RANGES Vac.-15,000 psi and compound ACCURACY ASME B 40.1 Grade B (±3-2-3% of span) DIAL SIZE 63mm (21?2?) CASE MATERIAL 3005 – 304 stainless steel, dry, liquid filled or field fillable 3005P – Black ABS dry or glycerine filled WETTED MATERIAL Bronze/brass SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement CONNECTION 3005 – 1?4 NPT lower and back 3005P – 1?4 NPT lower Optional, metric and SAE connection RANGES Vac.-15,000 psi and compound TYPE 3005 / 3005P HYDRAULIC GAUGE Applications include hydraulic systems, machine tools, pressure washers/sprayers, compressors, irrigation equiptment and a variety of other applications. ACCURACY ASME B 40.1 Grade B (±3-2-3% of span) DIAL SIZE 21?2,? 31?2? CASE MATERIAL Black painted steel Optional, ABS (Type 1005PM); stainless clad aluminum (Type 1005SM) WETTED MATERIAL 316 stainless steel/steel SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement CONNECTION 1?4 NPT lower RANGES 30 in.Hg Vac/0/150 psi, 30 in.Hg Vac/0/300 psi with equivalent ammonia temperature scales TYPE 1005M, XR5 REFRIGERANT AMMONIA This product was designed to meet the require- ments of refrigerant ammonia applications. Features include enhanced leak integrity plus dual scale (psi/temp) dial necessary for these applications. ACCURACY ASME B 40.1 Grade B (±3-2-3% of span) DIAL SIZE 21?2? CASE MATERIAL Black painted steel Optional, stainless clad aluminum (Type 1005SM) WETTED MATERIAL 316 stainless steel/steel SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement CONNECTION 1?4 NPT lower Optional, 0.020”orifice stainless steel throttle plug RANGES 0/60 psi, 0/150 psi, 0/400 psi TYPE 1005M, XRG AGRICULTURAL AMMONIA This product was designed to withstand rug- ged agricultural applications. Features include stainless tube and socket, in addition to glass window, necessary for anhydrous ammonia applications. Ashcroft commercial pressure gauges also provide True Zero? indication. True Zero? is true indication of zero pressure being applied to the gauge. All ranges listed may not be available in all sizes/connections. Please consult individual spec sheets. TYPE 1005, XUL SPRINKLER SERVICE GAUGE These gauges are UL-393 listed, UL of Canada listed and FM approved for fire protection sprinkler service for either water or air systems. F M ACCURACY ASME B 40.1 Grade B (±3-2-3% of span) DIAL SIZE 31?2? CASE MATERIAL ABS/polycarbonate blend WETTED MATERIAL Bronze/brass SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement CONNECTION 1?4 NPT lower RANGES 0-300 psi (water), 0-80 psi retard to 250 psi (air) LOOK FOR THESE AGENCY MARKS ON OUR PRODUCTS ACCURACY ±1% at zero, ±2% three fourths of scale, ±5% last fourth of scale DIAL SIZE 21?2? CASE MATERIAL ABS, red (high pressure) ABS, blue (low pressure) Optional, black, ABS WETTED MATERIAL Bronze/brass SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement with Flutter Guard? CONNECTION 1?8 NPT lower RANGES Vac/0/120 psi retard to 250 psi, 0/500 psi Vac/0/500 psi retard to 800 psi, 0/800 psi Optional, alternate refrigerant ranges Note: for panel mount refrigeration gauges (recovery, recycling) see Type 1001T options FlutterGuard standard feature of this product TYPE 1007P, XOR REFRIGERATION MANIFOLD Typical applications include checking or servic- ing refrigerant levels in automotive, residential or industrial air-conditioning units; refrigerant recovery and reclamation units; refrigerant transport systems and large scale air- conditioning and chilling equipment. ACCURACY ASME B 40.1 Grade A (±2-1-2% of span) DIAL SIZE 41?2? CASE & RING MATERIAL Aluminum with back-flange case, painted black; chrome plated ring WETTED MATERIAL Bronze/brass soldered, siphon required for steam service SENSING ELEMENT Bourdon tube; Ashcroft patented PowerFlex? movement CONNECTION 1?4 NPT lower Optional, throttle plugs RANGES Vac-600 psi and compound TYPE 2071 CONTRACTOR GAUGE These gauges are designed to meet the needs of heating, ventilating, plumbing and air- conditioning contractors. ACCURACY ±0.5% of span CASE SIZE 21?2? CASE MATERIAL Noryl? WETTED MATERIALS 17-4 PH stainless steel sensor; 316 stainless steel socket SOCKET SIZE 1?4 NPT CONNECTION Lower (6 o’clock), 3, 9 and 12 o’clock RANGES Vac. thru 19,999, including compound POWER SOURCE Two AAA alkaline batteries BATTERY LIFE 1000 hrs. OPERATING TEMPERATURE 14/140°F (–10/60°C) STORAGE TEMPERATURE –4/158°F (–20/70°C) AGENCY APPROVALS CE, EN 61326 (1998) CE, EN 61326 Annex A (heavy industrial) TYPE D1005PS GENERAL DIGITAL GAUGE This product is an excellent choice for a wide variety of pressure measurement applications. When compared to mechanical gauges the D1005PS offers overall enhanced value. *Protective Boot Optional LOOK FOR THIS AGENCY MARK ON OUR PRODUCTS Commercial Gauge Quick Guide TYPE 40DDG/50DDG DIRECT DRIVE GAUGE Typical applications include filter regulator lubricators, portable compressors, air tanks, industrial machinery and a variety of other applications. Excellent shock resistance. ACCURACY ASME B 40.1 Grade B (±3-2-3% of span) DIAL SIZE 40mm (11?2?) or 50mm (2?) CASE MATERIAL ABS polycarbonate blend, black WETTED MATERIAL Beryllium copper coil, silicone dampened Integral ABS polycarbonate blend socket Optional, 1?8 NPT or 1?4 NPT brass, throttle plug SENSING ELEMENT Spiral wound Bourdon tube CONNECTION 40mm – 1?8 NPT back 50mm – 1?8 NPT or 1?4 NPT back RANGES 0-60 psi (180° arc); 0-100 psi, 0-160 psi, 0-200 psi, 0-300 psi, 0-400 psi (235° arc) For optimum gauge life, select a gauge with a full scale pressure range of approximately twice the maximum excursion pressure Consult factory for high cycle life applications ACCURACY ±5% of span DIAL SIZE 23mm (0.906?) CASE MATERIAL ABS blend, black WETTED MATERIAL Beryllium copper tube/brass socket SENSING ELEMENT Spiral wound Bourdon tube CONNECTION 1?8 NPT back with 15mm (9?16?) wrench flats. Optional, throttle plugs, PT 1?8? (JIS) and R 1?8? (BSPT) threads RANGES 60 psi-100 psi (180° dial arc) 160 psi-300 psi (235° dial arc) TYPE 23DDG MINIGAUGE? PRESSURE GAUGE These gauges are perfect for a multitude of applications where a 11?2? conventional size gauge is too large, such as mini-FRL’s, pneumatic stack valves and air compressors. ACCURACY Standard: ±2% at setpoint (setpoint is normally 50% of range) UL listed: ±3.5% of span of middle three-fifths of scale DIAL SIZE 11?4?, 11?2? CASE MATERIAL Stainless steel, sealed WETTED MATERIAL Beryllium copper tube/brass socket SENSING ELEMENT Spiral wound Bourdon tube Optional, silicone dampened tube, silicone- filled tube CONNECTION 1?8 NPT back, safety plug in 1500 psi-4000 psi ranges. Optional, 1?4 NPT back, throttle plugs RANGES 0/60 psi, 0/100 psi, 0/160 psi, 0/200 psi, 0/300 psi, 0/700 psi, 0/1,200 psi, 0/1,500 psi 0/2,000 psi, 0/3,000 psi, 0/4,000 psi TYPE 12DDG/15DDG DIRECT DRIVE GAUGE Applications include pumps, air compresors, portable tire inflators, portable oxygen equip ment, self-contained breathing apparatus, portable industrial gas cylinders and a variety of other applications. ACCURACY Conforms to applicable UL specs* DIAL SIZE 11?4?, 11?2? CASE MATERIAL Stainless steel, sealed WETTED MATERIAL Beryllium copper/brass SENSING ELEMENT Spiral wound Bourdon tube Optional, silicone-filled tube Spiral tube, beryllium copper CONNECTION 1?8 NPT back Optional, special socket configurations RANGES Maximum scale pressure from 200 psi to 1200 psi *UL 299 UL 626 UL 1058 UL 1093 TYPE MFX FIRE EXTINGUISHER GAUGE These products are designed for use on portable fire extinguishers and systems. SP3M8/07 All ranges listed may not be available in all sizes/connections. Please consult individual spec sheets.
1084 3” Ashcroft壓力校驗表 1082 41/2”，6”，81/2” 壓力校驗表 2089，2086，2084 Ashcroft高精度數字壓力校驗表 ATE-100 LCD 數字式校驗儀 精度 ASME B 40.1 Grade 2A (±0.5% of span) 表盤尺寸 3" 外殼材質 300系列拋磨光的不銹鋼 接液材質 316不銹鋼 敏感元件 波登管 連接 1/4 NPT只有徑向 量程 真空至1000 psi 精度 ASME B 40.1 Grade 3A (±0.25% of span) 表盤尺寸 41/2", 6", 81/2" 外殼材質 鋁, 酚醛, 聚丙烯 接液材質 銅/黃銅，蒙乃爾 敏感元件 波登管 連接 1/4 NPT(標準) 1/2 NPT軸向或徑向(選項) 量程 真空至10,000 psi 精度 ±0.05%, ±0.10%或±0.25% of span 表盤尺寸 3" 外殼材質 電解拋光的300系列不銹鋼 接液材質 316不銹鋼 連接尺寸 1/4NPT , JIS, DIN, SAE (可要求其他形式) 連接方向 徑向6點, 3和9點鐘方向 量程 真空, 5 psi至7000 psi包括正負 聯程和絕壓 電源 3節AAA堿性電池 電池壽命 >1000小時 使用溫度 修正溫度：0/150oF(-18/63℃) 儲藏溫度 -40/180oF(-40/82℃) 許可證 CE, EN50082-1(1997, FM, CSA) 壓力測量精度 ±0.025, ±0.05和 ±0.1% of span 壓力測量范圍 0/0.25英寸水柱至0/10,000 psi 壓力類型 表壓, 正負聯程, 真空, 絕壓和差壓 溫度測量 支持最通用的RTD類型的溫度探頭和熱偶 溫度補償 20-120oF 體積 7.88in. (長)*4.24in.(寬)*3,25in. (高) 重量 最大2.2磅, 包含2個壓力模塊 外殼材質 高強度ABS 傳感器模塊容量 Ashcroft AQS“快速選擇”傳感器 模塊的兩個脛室 顯示 兩行LCD, 每行0.037英寸高, 可以同時顯示來自兩個模塊的數據 電氣連接 小型隱藏的香蕉插孔( 每個 ATE-100提供一套測試表筆) 更新本 130ms(通常), 安裝一個傳感器 解析度 ±0.002% of span, 60,000 采樣點 限制( 平均測量值) 0-16個連續讀數計算平均 接口 RS232, 波特率9600 ST-2A LCD 數字式指示器 1305D 靜重壓力校驗儀 1327D，1327CM 壓力表比較儀 PT LCD 面板顯示 數字式指示器 壓力測量精度 ±0.025, 0.05和0.1% of span 壓力測量范圍 0/0.25英寸水柱至0/10,000 psi 壓力類型 表壓, 正負聯程, 真空, 絕壓和差壓 溫度測量 支持最通用的RTD類型的溫度探頭 和熱偶 溫度校準 20-120oF 體積 10.9in.(長)X 3.53in(寬)x4.0in.(高) 面板開口尺寸 6.56in.x3.53in 重量 最大4.08磅，包含2個壓力模塊 外殼材料 高強度ABS 傳感器模塊容量 存放Ashcroft AQS“快速選擇”傳 感器模塊的兩個腔室 顯示 兩行LCD, 每行0.037英寸高, 可以同時顯示來自兩個模塊的數據 電氣連接 標準香蕉頭 使用溫度范圍 32-120oF 更新本 130ms(通常), 只裝一個傳感器 解析度 0.002% of span, 60,000 采樣點 電氣測量 0-50 mA或0-30 Vdc 電氣測量 0-50 mA或0-30 Vdc 精度 ±0.1% of reading 使用壓力 15 psi-10.000 psi (100 kPa-70,000 kPa) 使用介質 1305D: SAE20砝碼或機油 1305DH 磷酸基或乙二醇液體 O 型環材質 1305D: Buna-N (D系列) 1305DH 乙丙烯 活塞和缸體材料 不銹鋼 砝碼材料 非磁性模鑄鋅 油箱容積 大約1.5品脫 (0.7升) 可以提供特殊的“CD-5”證書 使用壓力 0-10.000 psi(最大)(0-70,000kPa) 使用介質 標準: SAE20砝碼或機油 選項: 磷酸鹽或乙二醇液體, 氧氣設 備用蒸餾水 O 型環材質 標準: Buna N (D系列) 選項: 乙丙烯(DH系列) 油箱容積 大約1.5品脫 (0.7升) 特殊型號 1327DG 精度 ±0.25% F.S 壓力表型號 Aschorft 41/2" 1082型帶溫度補償 的表 可以提供特殊的“CD-4”證書 特殊型號 1327CM 精度 ±0.1% F.S 壓力表型號 Ashcroft 6英寸A4A型帶溫度補償 的表 補償溫度 -25oF - +125oF (可維持±0.1% F.S精度) 壓力測量精度 ±0.025, 0.05和0.1% of span 壓力測量范圍 0/0.25英寸水柱至0/10,000 psi 壓力類型 表壓, 正負聯程, 真空, 絕壓和差壓 溫度測量 支持最通用的RTD類型的溫度探頭和熱偶 體積 7.72in.(長)X 6in.(寬) X 2.95in.(高) 面板開口尺寸 5.4in. X 2.68in 重量 決定于配置，最大小于4磅，包含2個傳感器和電池組 外殼材質 高強度ABS 傳感器模塊容量 Ashcroft PPT傳感器的兩個腔室 顯示 兩行LCD, 每行0.038in.高, 可以同時顯示來自兩個模塊的數據 輸出 全功能RS232 補償溫度 20OF-120OF 選項 背景光, 內部Nicad充電電池,手柄, 面板安裝支架 使用溫度范圍 32OF - 120OF 更新本 130ms(通常)，只裝一個傳感器 解析度 0.002% of span, 60,000 采樣點現場或實驗室校準或設置其他儀表和設備的高精度壓力標準，同樣也可用于工藝過程中高精度溫度或壓 力的測量。
2089，2086，2084Ashcroft高精度數字壓力校驗表 2074，2174，2274Ashcroft工業數字壓力表 D1005PS一般用途數字壓力表 精度 ±0.05, 0.1％或0.25％ of span 表盤尺寸 3" 外殼材質 電解拋光的300系列不銹鋼 接液材質 316不銹鋼 連接尺寸 1/4 NPTM, JIS, DIN, SAE（可要求其他應用） 連接方向 徑向6點, 3和9點 量程 真空, 5 psi至7000 psi包括正負 聯程和絕壓 電源 3節AAA堿性電池 電池壽命 >1000小時 使用溫度 修正溫度: 0/150oF(-18/63 oC) 儲藏溫度 -40/180o F（ -40/82 oC） 許可證 CE, EN 50082-1(1997), FM, CSA, CENELEC-ATEX 100 （等待核準） 精度 ±0.25% of span 表盤尺寸 3", 41/2" 外殼材質 3"300系列不銹鋼 41/2"玻璃纖維加強熱塑型材料 41/2"黑色噴涂鋁 接液材質 17-4 PH 不銹鋼敏感元件 316 不銹鋼接口 接口尺寸 1/4 NPT, 1/2NPT（ 僅對41/2"外殼）（可要求其他應用） 連接方向 徑向6點, 3, 9和12點 量程 真空, 15 psi 至 20,000 psi 包括聯程 電源電池 3" 2節AA堿性電池 41/2" 2節C堿性電池 環路電源 4-20 mA 線路電源 12-36 Vdc, 1 amp 電池壽命 3" 大于1000小時 41/2" 大于3600小時 使用溫度 14/140oF（-10/60oC） 儲藏溫度 -4/158oF（-20/70oC） 許可證 CE, EN 50082-1(1997), FM, CSA,CENELEC-ATEX 100 精度 ±0.05%, ±0.10%或±0.25% of span 表盤尺寸 3" 外殼材質 電解拋光的300系列不銹鋼 接液材質 316不銹鋼 連接尺寸 1/4NPT , JIS, DIN, SAE (可要求其他形式) 連接方向 徑向6點, 3和9點鐘方向 量程 真空, 5 psi至7000 psi包括正負 聯程和絕壓 電源 3節AAA堿性電池 電池壽命 >1000小時 使用溫度 修正溫度：0/150oF(-18/63℃) 儲藏溫度 -40/180oF(-40/82℃) 許可證 CE, EN50082-1(1997, FM, CSA)
1279 DURAGAUGE? 壓力表 1377 DURAGAUGE? 壓力表 1379 DURAGAUGE? 壓力表 2462 DURAGAUGE? 壓力表 精度 ASME B 40.1 Grade 2A(±0.5％ of span) 表盤尺寸 41/2" 外殼材質 酚醛 接液材質 316不銹鋼, 銅合金, 蒙乃爾 敏感元件 波登管 連接-NPT 1/2 NPT(標準)徑向或軸向 1/4 NPT(選項) 量程 真空至30,000 psi, 正負聯程 精度 ASME B 40.1 Grade 2A(±0.5％ of span) 表盤尺寸 41/2", 6", 81/2" 外殼材質 酚醛, 鋁, 聚丙烯 接液材質 316不銹鋼, 銅合金, 蒙乃爾 敏感元件 波登管 連接-NPT 1/2 NPT(標準)徑向或軸向 1/4 NPT(選項) 量程 真空至30,000 psi, 正負聯程 精度 ASME B 40.1 Grade 2A（±0.5％ of span） 表盤尺寸 41/2", 6", 81/2" 外殼材質 酚醛, 鋁, 聚丙烯 接液材質 3 1 6 不銹鋼, 銅合金, 蒙乃爾, Inconel 敏感元件 波登管 連接-NPT 1/2 NPT(標準)徑向或軸向 1/2 NPT(選項) 1/2" HP高于30,000psi 量程 真空至100,000 psi，正負聯程 精度 ASME B 40.1 Grade 2A(±0.5％ of span) 表盤尺寸 6" 外殼材質 聚丙烯 接液材質 316不銹鋼, 銅合金, 碳鋼, 蒙乃爾 敏感元件 波登管 連接-NPT 1/2 NPT(標準)徑向或軸向 1/4NPT(選項) 量程 真空至30,000 psi, 正負聯程 1259 POOCESS 壓力表 1288 DURADRIVE? 壓力表 精度 ASME B 40.1 Grade 2A(±0.5％ of span) 表盤尺寸 41/2" 外殼材質 聚丙烯 接液材質 316不銹鋼, 蒙乃爾 敏感元件 波登管 連接-NPT 1/2 NPT(標準)徑向 1/4 NPT(選項) 量程 真空至20,000 psi, 正負聯程 精度 ASME B 40.1 Grade 2A(±0.5％ of span) 表盤尺寸 41/2" 外殼材質 酚醛 接液材質 316不銹鋼, Inconel 敏感元件 螺旋管 連接-NPT 1/2 NPT(標準)徑向 1/4NPT(選項)徑向 量程 45 psi /真空至10,000 psi
 |
